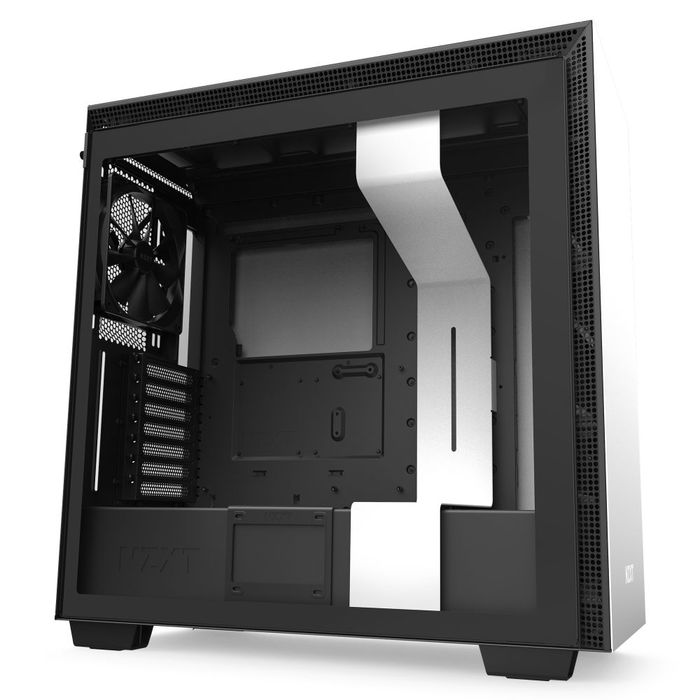

H710
We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H710i.
With a USB 3.1 Gen 2-compatible USB-C connector on the front panel, it’s easier than ever to connect the newest smartphones, high-speed external storage, or the latest peripherals to your PC.
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Cable management can take more time than assembling a system. Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive.
Four Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a reversible,removeable, top-mounted bracket designed for radiators up to 360mm simplifies the installation of either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
| Dimensions | W: 230mm H: 516mm D: 494mm (with feet) |
| Material(s) | SGCC Steel and Tempered Glass |
| Weight | 12.1 kg |
| Motherboard Support | Mini-ITX, MicroATX, ATX and EATX (Up to 272mm or 10.7-inches) |
| Front I/O Ports | 1x USB 3.1 Gen 2 Type-C 2x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header |
| Filters | All Air Intakes |
| Included Accessories | Installation screws 10x Cable ties 1x Headset Audio Jack Splitter (4 pole to 3 pole) |
| Expansion Slots | 7 |
| Drive Bays | 2.5”: 7 3.5”: 2+2 |
| Radiator Support | Front: 2x 140 or 3x 120mm with Push/Pull Top: 2x 140 or 3x 120 Rear: 1x 120 |
| Fan Support | Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included) Top: 3x 120/2x 140mm Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing Aer F140 (Case Version) Speed: 1,000 ± 200 RPM Airflow: 68.95 CFM Noise: 29 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 18-22mm GPU Clearance: Up to 413mm CPU Cooler: Up to 185mm Front Radiator: 60mm Top Radiator: 30mm Reservoir & Pump: Up to 224mm (Along cable bar) |
| Compatibility | NVIDIA GeForce RTX 30 series case compatibility chart |
| Warranty | 2 Years |
| Model Number | CA-H710B-W1 |
| EAN | 5060301694983 |
| UPC | 815671014689 |
| Multi-Language Manual | 22.7 MB | Download |
| NZXT.com Store Returns, Exchange, Parts Policy | Eligible products qualify for a full refund or exchange only with an authorized RMA number and the item is returned to the NZXT.com Store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request at support@nzxt.com. If you are purchasing any items that are discontinued, please be aware that we may no longer carry parts for those items. We apologize for the inconvenience. They will come as is. If you have issues upon receiving your case, please contact us as soon as possible. |
