We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.
With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC

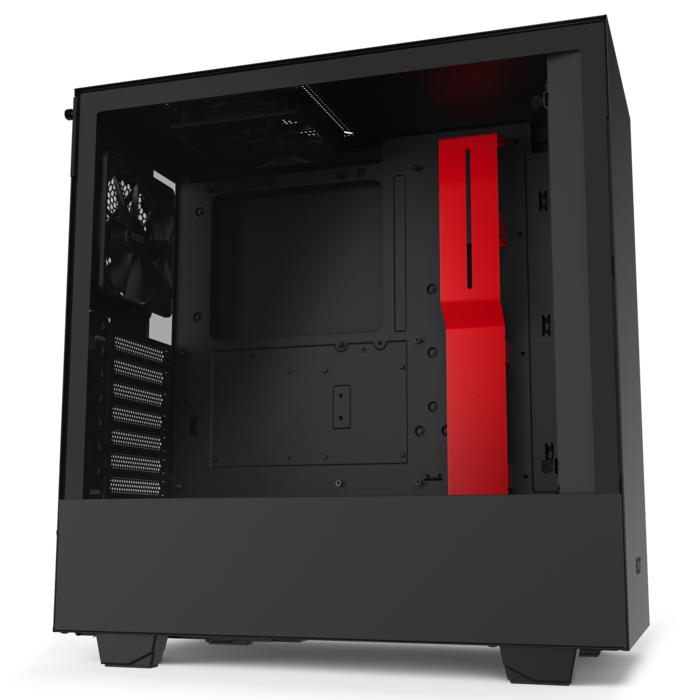

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
|Dimensions||W: 210mm H: 435mm D: 428mm (without feet)|
W: 210mm H: 460mm D: 428mm (with feet)
|Material(s)||SGCC Steel, Tempered Glass|
|Motherboard Support||Mini-ITX, MicroATX, and ATX|
|Front I/O Ports||1x USB 3.1 Gen 2 Type-C|
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x HD Audio Header
|Filters||All Air Intakes|
|Included Accessories||Installation screws|
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
|Drive Bays||2.5”: 2+1|
|Radiator Support||Front: 2x 140 or 2x 120mm with Pull|
Rear: 1x 120mm
|Fan Support||Front: 2 x 120/ 2 x 140mm|
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)
|Fan Specs||Aer F120 (Case Version)|
Speed: 1200 ± 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing
|Clearance||Cable Management: 19-23mm|
GPU Clearance: Up to 381mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
